Master Box

MCN

Z3X Samsung




Z3X-Box Samsung Edition:
Hardware info:
Z3X-Box - Ftdi box with shlumberger cryptoflex card inside.
Possibility to use Z3X box as universal box cables(Unibox pinout)
22 high quality rj45 cables.
Package Content:
- Z3X usb box
- Free software update, free acces to support download (Fast server, Total about 100gbt -> every day upload new files )
- Samsung cable sets 22pcs: D800, Z500, E810, E860, Z320I, E530, E700, D720, D500, Z105, S100 V804, X540, E210, LG 7050, C140, C160, C180, C260, C450, J750.
Software info:
- Supported platforms: Agere,Sysol, Swift,Infenion, OMAP and Qualcomm
- Alphabetical phone model selection or selection by platforms from Z3x Shell
- Auto displays information about required cable for each on selecting phone model
- Auto display if phone must be connected with or without battery
- Online updater firmware Smart Card firmware
- Multilanguage interface:
- All modules is Self expansibility by advanced users and exchange by configuration files between them.
- Loading News from a server about updates versions and plans
- Use flash files in original format (only UMTS crypted)
- Working with SWAP PCB
- Service jobs (Battery calibration/Lcd contrast/RX TX, ... resets)
- Automatic login to support area from Z3x Shell (Support Button)
UMTS module:
UMTS Supported models:

705SC, 706SC, 707SC, 707SCII, 708SC, 709SC, 709SCII,
805SC, 821SC, 920SC,
A411, A412, A501, A551, A561, A701, A707, A711, A717, A727, A736, A737, A747, A747N, A767, A777, A801, A811, A821, A837,
F330, F400, F480, F490, F700,
G400/G400F, G800/G800L, G808,
J200, J630,
L170, L400, L760/L760G, L768, L770V, L810, L811,
P910, P920, P930, P940, P960,
T639, T818,
U700/U708, U700B, U800/U800F, U900/U900u,
Z100, Z105, Z107, Z110, Z130, Z140, Z150, Z170, Z230, Z240, Z240E, Z248, Z300, Z310, Z360, Z370, Z400, Z500, Z510, Z540, Z548, Z560, Z620, Z630, Z650, Z710, Z720/Z720M, Z728, ZV10, ZV30, ZV40, ZV50, ZV60

UMTS Supported features:
Reads phone info.
Single-file flashing.
High-speed flashing.
Resets all types of locking.
Bypass MSL and MSL2 security.
IMEI repair*.
“Phone freeze” repair.

SYSOL module:
SYSOL Supported models:

B110,
C160, C160B, C168, C168B, C180, C327,C450, C458,
E100, E108, E330, E330N, E335, E338, E420, E428, E630, E638, E700, E708, E800, E808, E820,
M110, M120,
X100, X100A, X108, X460, X468, X490, X540, X550, X600, X608, X620, X628, X640, X648, X650, X658

SYSOL Supported features:
-Flash writing/reading (NOR and NAND flash), writes flash to any address allotted for flashing.
-Erase/read/safe verify flash for any region or all flashes.
-EPROM read/write/auto restore.
-Writing IMEI and unlocking in flash mode (no bypass MSL, no more bugs) supported for all present and future models.
-Visual calibration of battery settings.
-IMEI repair in SWAP without correct EPROM writing.
-Auto restore/save EPROM zone.
-Resets all locks.
-Writes BT (Bluetooth).

SWIFT module:
SWIFT Supported models:
D500, D500E, D508, D510, D600, D600E, D608, D600E, D610, D618, D780, D788, D820, D828, D880, D888, D900, D908, D900I, D908I, D980, D988,
E200, E208, E200B, E208B, E250, E258, E250D, E258D, E340, E348, E350, E358, E360, E368, E370, E370L, E378, E380, E388, E390, E398, E480, E488, E500, E508, E590, E598, E640, E648, E690, E698, E730, E738, E740, E748, E750, E758, E760, E768, E780, E788, E830, E838, E890,
E898,
F110, F118, F150, F158, F250, F258,
G600, G608,
I710, I718, I750, I758,
J150, J158, J210, J218,J700, J708,
L250, L258, L310, L318, L600, L608,
M150, M158, M3510, M610, M618,
P180, P200, P220, P240, P260, P780, P788, P850, P858,
T219, T229, T339, T429, T439, T619,
X670, X678, X700, X708
SWIFT Supported features:
-Flash writing/reading (NOR and NAND flash), writes flash to any address allotted for flashing.
-Erase/read/safe verify flash for any region or all flashes.
-EPROM read/write/auto restore.
-Writing IMEI and unlocking in flash mode (no bypass MSL, no more bugs) supported for all present and future models.
-Visual calibration of battery settings.
-IMEI repair of the swap without correct EPROM writing.
-Auto restore/save EPROM zone.
-Resets all locks.
-Writes BT (Bluetooth).

Agere module:
Agere Supported models:
A127,
B100, B108, B200, B208, B220, B228, B300, B308, B320, B328, B500, B508, B510, B518, B520, B528,
C120, C128, C130, C130B, C140, C150, C170, C178, C180, C188, C200, C208, C210, C218, C225, C230, C238, C240, C240L, C250, C258, C260, C260, BC268, C300, C300B, C308, C400, C408, C520, C528,
D410, D520, D528, D720, D728, D800, D800N, D807, D808, D830, D838, D840, D848,
E116, E210, E218, E300, E300F, E310, E310F, E490, E498, E530, E570, E578, E600, E600F, E608, E610, E618, E620, E628, E710, E715, E720, E728, E770, E778, E790, E810, E818, E840, E840B, E848, E900, E908, E910, E918, E950, E958,
F200, F208, F210, F218, F300, F300B, F308,
I300, I308, I310, I320, I400, I408,
J600, J600E, J600G, J608, J610, J618,
L320, L328,
M300, M300B, M300N, M308, M310, M318, M600, M608, M620,M628,
P310, P318, P528,
S300, S300M, S308, S308M, S400I,S410, S410I,
T419, T519, T539, T609, T619, T629, T639, T719,
U100, U108, U300, U308, U600, U600B, U600G, U608, U608B, U608G,
V200,
X120, X140, X150 ,X160, X160B, X168, X168B, X200, X208, X210, X218, X300, X308, X400, X408, X450, X458, X461, X480, X481, X500, X508, X510, X518, X520, X528, X530, X610, X630, X638, X660, X668, X680, X680N, X688, X800, X808, X810, X818, X820, X828, X830, X830N, X838

Agere Supported features:
-Reads phone info.
-Flash read/write (flash soft in normal mode, difference mode, erase region settings).
-Super fast USB flashing mode available for Agere phones.
-Erase/download/safe verifies flash (no use OptiFlash method) for any region or all flashes.
-Writes BT(Bluetooth), generates random BT address and writes more data (s/n, HW ... )
-PTE command processor: to use script files for add many operations by "One click".
-Repairs IMEI using PTE command (test mode), flash mode (generated EPROM) or calibration mode (new type EPROM).
-All types of locks direct (fast) reset using PTE command or flash mode.
-Rewrites IMEI of the swap PCB (for Authorized Service Center).
-“Phone freeze” repairing.
-Repairing "Phone locked return for servicing", "Wrong Card".
-FFS format without content file upload (for repair startup blink phone).
-Operation with OTP: verify, write and lock (for Authorized Service Center only).
Broadcomm module

Supported models:
A401,
B460,
J160, J400, J750, J758

Supported features:

-Flash reading/writing.

-EPROM reading/writing.

-Calibration data reading/writing.

-Reads network code.

-Resets all locks.

-IMEI repair.

Package contains:

- Z3X-Box Samsung edition - 1 pc.
- Samsung cable set (21 pcs.):

1. Samsung E530
2. Samsung 7050
3. Samsung C140
4. Samsung C160
5. Samsung C180
6. Samsung C260
7. Samsung C450
8. Samsung D500
9. Samsung D720
10. Samsung D800
11. Samsung E210
12. Samsung E700
13. Samsung E810
14. Samsung E860
15. Samsung J750
16. Samsung S100
17. Samsung V804
18. Samsung X540
19. Samsung Z105
20. Samsung Z320I
21. Samsung Z500
22. USB cable for PC

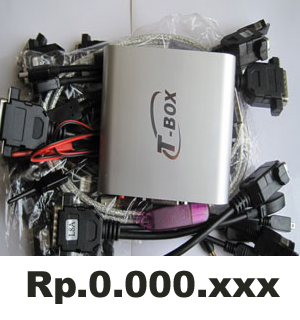

T-BOX

About T-BOX
Support these types of CPU chips which as following:
MTK, SPD, Ankai, ADI, SKY, TI, INF, AGERE, OM, SI, 4904 etc.. Scan these chips and BOOT signal automatically, we can upgrade the master for scanning the unknown chips, the scanning speed is supper fast and accurate.

NEW: All intelligent operation & human design
1. Identify cable no need manual control, applicable for any cables from other factories
2. Identify chips by scanning automatically (not suggest because of the slow speed, time from 2second to 6 minutes)
3. Scan BOOT signal automatically, no need to press the power-on key of mobile phone when scanning the SPD chip(just need to press the "reset" key to power off when doing the "write" and "read" operation
4.The software platform will pop-up after the scanning done.
Scan USB explanation of scanning master

After open T BOX master software, connect to the mobile phone, then power the mobile phone by the power line of the conversion lines which need to be connected to the BOX, select the types of chips which you want to scan(Take scan the definition of SPD USB for example: 6600D CPU no need to scan USB) the operation description will appear automatically in the master

Automatic memory scanning function(If there is a new definition, after scanning, the memory will be stored, then when scan the same mobile phone at the second time, the device will identify it automatically and scan definition rapidly in 1 second)after scanning done the software platform will pop-up automatically .using the Philips chip can make the time shorted to 3-20 seconds when scanning the SPD chip and USB circuit(even for the special mobile phone only need less than 50 seconds),super fast and super accurate. Can be defined by manual control as : RXD, TXD, USB D+, USB D-, VCC, GND signal lines and so on,the master interface as following:

The latest optimal power circuit, the super short-circuit & overcurrent protection
1.There is a overcurrent protection both in power clip and output socket ;the box scanning power supply is automatic conversion, no need distinguish Positive and negative for charging mobile phone.
2. Prompts from speaker and LED when short-circuit and overcurrent.
3.There is a reset key in T BOX to power off mobile phone, It is quite convenient for SPD mobile phone to do the operation of reading and writing etc.(There are full details in the software platform specification)
NEW: The latest and perfect SPD&MTK software platform can help you write flash, format, read lock(include SPD mobile phone user lock), read phonbook, write IMEI, repair BAD fault. The platform as following:

Z3X LG


Advantages:
- Qualcomm, Infineon, Analog Devices, Texas Instruments, MTK and SEMC platforms are supported.
- Alphabetical phone model selection or selection by platform from Z3X Shell.
- Auto displaying information about required cable for each model selected.
- Auto displaying information if the phone must be connected with battery or without it.
- Smart Card firmware online update.
- Multilanguage interface.
- Configuration files exchange between the users.
- Loading news from the server about update versions and plans.
- Uses flash files in original format (only UMTS).
- Automatic login to support area from Z3X Shell (Support Button).
Supported models and features:

Infineon module:
Supported models:
* LG CU320
* LG KC550
* LG KC560
* LG KF600
* LG KG270
* LG KG271
* LG KG275
* LG KG276
* LG KG278
* LG KG285
* LG KG288
* LG KG289
* LG KG370

* LG KG375
* LG KP100
* LG KP105
* LG KP105A
* LG KP105B
* LG KP106
* LG KP106A
* LG KP106B
* LG MG160A
* LG MG160B
* LG MG161
* LG MG370

Supported features:
-Direct unlock
-Reads phone information
-Firmware update, FullFlash, Calibration data flashing
-FullFlash, Calibration data reading
-IMEI repair
-All locks reset
-Flash write/read
-EEPROM write/read
Analog Devices module:

Supported models:
* LG A7150
* LG B2000
* LG B2050
* LG B2060
* LG B2070
* LG B2100
* LG B2150
* LG C1100
* LG C1150
* LG C1200
* LG C1400
* LG C2200
* LG C3100
* LG C3300
* LG C3310
* LG C3320
* LG C3380
* LG C3400
* LG C3600
* LG F2100
* LG F2300
* LG F2400
* LG F2410
* LG F7100
* LG G1600
* LG G1610
* LG G3000
* LG G3100
* LG G5300
* LG G5300i
* LG G5400
* LG G7100
* LG G7120
* LG GB210
* LG KF240
* LG KF245
* LG KG110
* LG KG115

* LG KG118
* LG KG119
* LG KG120
* LG KG130
* LG KG210
* LG KG220
* LG KG221
* LG KG225
* LG KG228
* LG KG240
* LG KG245
* LG KG320
* LG KG320s
* LG KG328
* LG KG90
* LG KG800
* LG KP115
* LG KP200
* LG KP135
* LG KP175
* LG KP202
* LG KP202i
* LG KP235
* LG KP260
* LG KP265
* LG KP293i
* LG LG600
* LG L343i
* LG M4400
* LG M4410
* LG MG100
* LG MG101
* LG MG105
* LG MG120
* LG MG125
* LG MG230
* LG MG235
* LG MG320
* LG MG800
* LG MG808
* LG TG800
* LG W3000
* LG W5300
* LG W7100

Supported features:
-Reads phone information.
-Firmware update, FullFlash, Calibration data flashing
-FullFlash, Calibration data reading.
-IMEI repair.
-All locks reset.
LGQ UMTS module:
Supported models:
Model Flashing NVM read/write Repair IMEI repair Unlock
LG CU320 + + + + +
LG CU400 + + + + +
LG CU405 + + + + +
LG CU500 + + + + +
LG CU515 + + + + +
LG CU575 + + + + +
LG CU720 + + + + +
LG CU915 + + + + +
LG CU920 + + + + +
LG HB620 - - - - +
LG HB620T + + + - +
LG KB620 + + + - +
LG KB770 - + - - -
LG KC910 + + + - +
LG KE990 + + + + +
LG KE990d - - - - +
LG KF310 + + + - -
LG KF690 + + + - +
LG KF700 + + + - +
LG KS20 + + + + +
LG KU250 + + + - -
LG KU310 + + + - -
LG KU311 + + + + +
LG KU380 + + + + +
LG KU385 + + + + +
LG KU450 + + + + +
LG KU730 + + + - -
LG KU800 + + + + +
LG KU950 + + + - -
LG KU970 + + + - -
LG KU990 + + + + +
LG KU990GO - - - - +
LG KU990i + + + - +
LG KU990iGo + + + - -
LG L600V + + + + +
LG L600i - + + - +
LG L602i - + - - +
LG L704i - + + - +
LG MU500 + + + + +
LG MU550 + + + + +
LG TU500 + + + + +
LG TU515 + + + + +
LG TU550 + + + + +
LG TU575 + + + + +
LG TU720 + + + + +
LG U250 + + + - -
LG U250C + + + - -
LG U300 + + + - +
LG U300C + + + - -
LG U310 + + + - +
LG U310C + + + - -
LG U370 + + + - -
LG U370w +
LG U370c +
LG U450 + + + - +
LG U450C + + + - -
LG U800 +
LG U830 + + + - Patch
LG U880 + + + - +
LG U890 + + + - +
LG U900 + + + - +
LG U960 + + + - -
LG U970 + + + - -
LG U990 + + + + +
LG U8210 + + + + +
LG U8290 + + + + +

Supported features:
-Reads phone's info.
-New and simple interface.
-Easy model selection.
-Single-file flashing.
-Phone flashing.
-NVM write/read.
-Unlock.
-Fast country change.
-Repair.
-Russian + Ukrainian language flash files.
Texas Instruments

Supported models:
* LG B1200
* LG C1300
* LG C1300i
* LG CG225
* LG G4010
* LG G4050
* LG G5500
* LG G7000
* LG G7030
* LG G7050
* LG L1100
* LG L1150
* LG L1400
* LG L5100
* LG T5100
* LG OT320
* LG W7000
* LG W7020

Supported features:
- Firmware *.m0 files flashing
- Calibration data restore
- Flashing FullFlash binary files
- Reading FullFlash and Calibration data
- All lock types reset
- IMEI Repair
- Full factory reset
- Support of 3 standard interface languages. There is a possibility of adding your own interface language.
MTK

Supported models:
* LG KG195

Supported features:
-Read/write firmware, full flash and EEPROM
-Read codes
-Direct unlock
-Format FFS
-Repair phone reset
-IMEI repair
-Read firmware version
SEMC

Supported models:

* LG U8120
* LG U8130
* LG U8138
* LG U8180
* LG U8330
* LG U8360

Supported features:
- Direct unlock
- Flashing firmware *.ssw files
- Write and read GDFS
- Write and read full flash
- Repair
- Support of 3 standard interface languages. The user can add his own interface languages.
Package contains:
- Z3X Box LG Edition – 1 pc.

- LG cable set (19 pcs.)

1. LG 510
2. LG 600
3. LG 1100
4. LG 7050
5. LG 8110
6. LG B1200
7. LG B1300
8. LG C1100
9. LG C2200
10. LG КE550
11. LG KG800
12. LG KU311
13. LG LX1200
14. LG T050
15. LG U8110
16. LG U8110F
17. LG U8150
18. LG VX6000
19. USB cable for PC
website: http://z3x-team.com


Arc Video Tutorial © 2013 | Web Development by Jasa Buat Blog Murah - Jasa Pembuatan Blog - Jasa Buat Blog Toko Online
